Mini Tx (L-Band Mini Transmitter)

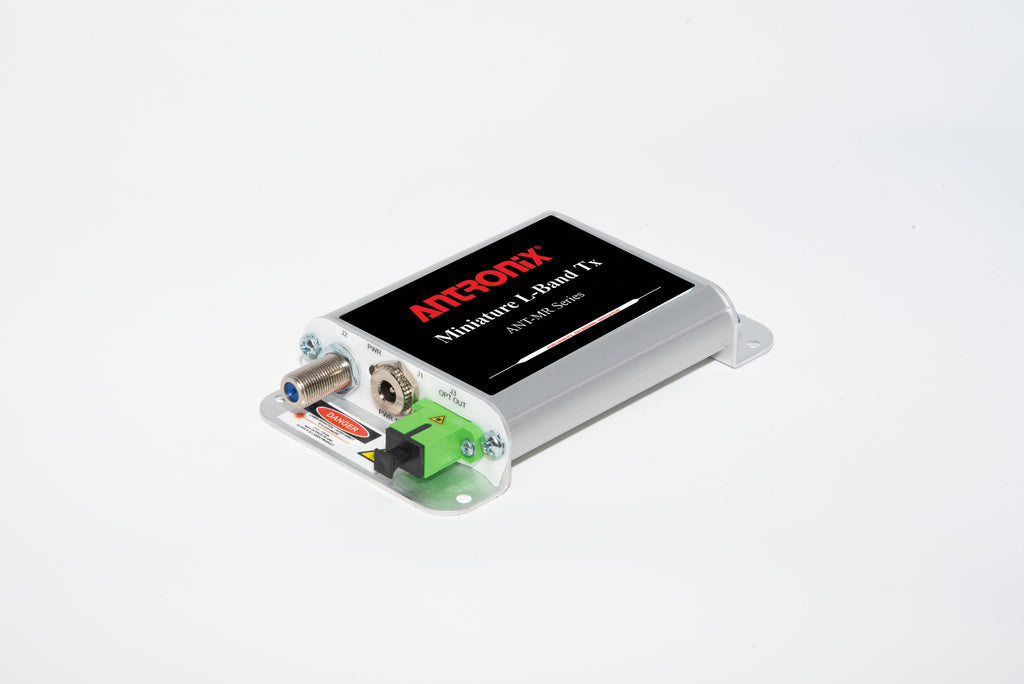

The Antronix Model AFT-MT Miniature L-Band Transmitter is a high performance, very wide bandwidth transmitter in a very compact package.

The Model AFT-MT Miniature L-Band Transmitter has been engineered to meet today’s high performance standards for L-Band transport. Its extreme bandwidth range allows the system to handle the next generation of satellite signals. The transmitter may be used with any L-Band receiver from Antronix.

It is ideal for a wide variety of communications applications including L-Band satellite antenna remoting, trunking radio, telemetry tracking, plus GPS time and frequency reference signal distribution. The extended frequency range to 3.6GHz allows this system to accommodate additional transponders coinciding with common European satellite communication applications.

The enhanced bandwidth to 3.6GHz is also unique in that it facilitates stacked LNB applications to accommodate additional transponders containing enhanced DBS programming services (e.g., HDTV, local channels, etc.) over single-mode fiber for DBS television distribution in campus, fiber-to-the-premise (FTTx), and multiple dwelling unit (MDU) environments. The AFT-MT offers 75Ω output impedance standard, or 50Ω optional. Optical connector options include FC/APC and SC/APC. Power is via an Antronix Model OTPS-12A power supply.
