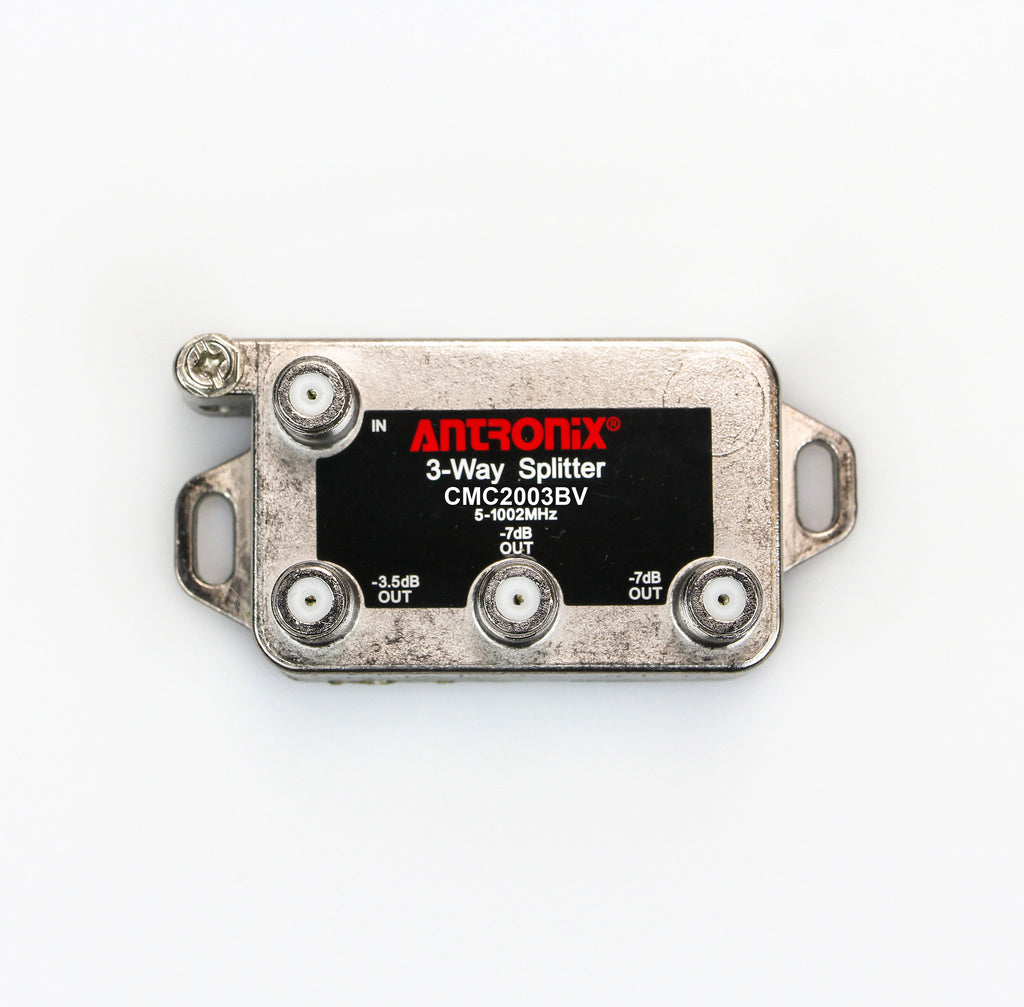

Reliability, quality and performance define the Antronix CMC2000 series digital splitter. Our horizontal and vertical digital splitters have been designed specifically for today’s two-way broadband networks. Our digital splitters are among the most robust in the industry. Every port on each CMC2000 series splitter is 6 kV ring wave surge protected, while our proprietary ferrites remain ultra-linear following several surges. The CMC2000 series digital splitters employ high “Q” surface mount technology (SMT) components, guaranteeing consistent performance over time and temperature. With over 90 versions available, there will be a CMC2000 digital splitter to meet your needs

• 6 kV Ring Wave Surge Protected All ports are protected against multiple 6 kV ring wave surges per IEEE specification C62.41 Category A3.

• -45 dBmV Spurious and Harmonics after 5 Surges of 6 kV Ring Wave with a +55 dBmV Return Signal Proprietary ferrite blend inhibits re-magnetization of the core due to voltage spikes from impulse noise or lightning. The ferrite remains ultra linear to prevent intermodulation where high level return carriers can affect forward path video signals.

• Digital Broadcast and HDTV Ready Compatible with existing and future networks.

• Flat 1 GHz Bandwidth with Minimal Insertion Loss Supports present and future multimedia applications including video, data and telephony.

• 35 dB Return Path Output Return Loss and 40 dB Port-to-Port Return Band Isolation Excellent return path performance compatible with two-way digitally modulated networks.

• Eclipse Contact Technology (ECT) F-Port Provides 400% more contact surface area for lower contact resistance and higher reliability.

• Capacitively Coupled F-Ports Protects against core re-magnetization and saturation while blocking AC surges. • Zinc Alloy Diecast Housing and Backplate w/Proprietary Nickel Alloy Plating Superior corrosion resistant plating combined with a diecast backplate protects the back of the housing where corrosion is more prominent.

• 100% Soldered Back Ensures repeatable 120 dB RFI shielding.

• 1 inch Port-to-Port Spacing Flat 15 psi Sealed, SCTE Compliant F-Port Prevents water migration in to the splitter and ensures an excellent ground connection.

• UV Resistant Label

• Integrated Mounting Tabs and Heavy Duty Ground Block for Years of Reliable Service
