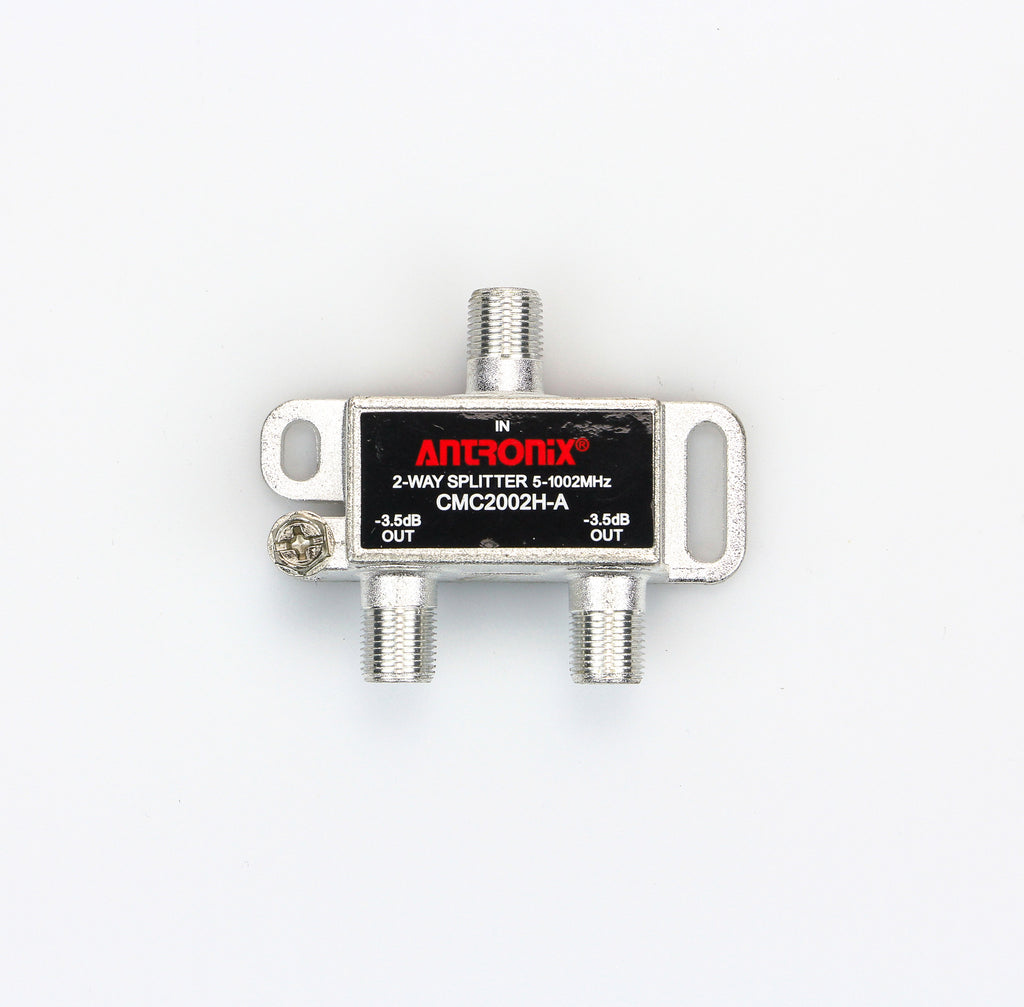

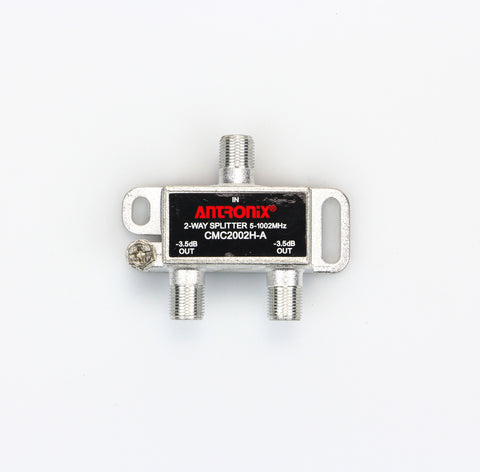

CMC2002HA - 2 Way Splitter

  • 6kV ring wave surge protection on all ports
  • 40 dB port-to-port isolation in return band
  • 35 dB output return loss in return band
  • Low intermodulation design
  • Tin alloy plating for the highest level of corrosion resistance
  • Zinc alloy diecast housing and backplate for superior housing integrity
  • Industry leading insertion loss
  • 15 psi sealed SCTE compliant F-ports
  • 100% soldered backplate
  • Machine threaded F-ports
  • Available with SCTE Compliant CamPort or Eclipse Contact Technology F-Port
  • Ideal for digital and cable modem applications
  • High surge resistance to withstand harsh environments
  • Unique plating for unmatched corrosion resistance
  • Comprehensive line of digital splitters: 2, 3, 4, 6, 8, 16-way splitters, horizontal, vertical, power passing, digital interface splitter.
